Web Guider Model WBG-03HD

wbg-03
The WBG-03HD  Web Guider
, with the ES-2 Edge Sensor

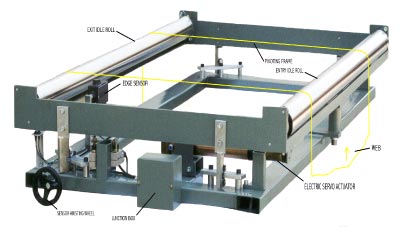

The WBG-03HD Web Guider is designed for guiding carpets and heavy fabrics.
It consists of:

  • A base
  • A pivoting frame with two idle rolls: the entry idle roll and the exit idle roll
  • ES-2 Edge Sensor or WBS-2 Wide Beam Sensor, installed on its adjusting frame
  • An electric servo actuator
  • A control cabinet.

Its guiding action is achieved by moving the idle rolls installed on the pivoting frame radially and laterally, simultaneously.

The pivoting frame is driven by the electric servo actuator according to a signal from the sensor. The ES-2 is a high resolution edge sensor able to guide the web up to +/-0.5mm.

The sensor’s signal value is close to 0V when the carpet is in desired position, otherwise the signal causes the electric servo actuator to extend or retract with a speed proportional to the signal’s value, thus guiding the carpet very accurately.

Specifications

  • Working width up to 5000 mm (16 feet)
  • ES-2 Edge Sensor resolution 0.05mm (.002”)
  • Guiding capacity up to +/- 305mm (12”)
  • Guiding accuracy up to +/- 0.5mm (.02”)
  • Max. line speed 250 m/min (280 yd/min)
  • Power requirement 220 VAC, 1kVA, single phase
